600V/1000V XLPE Insulated Overall Screened & Steel Wire Armored Cable to IEC 60502-1
Applications
These cables are used for electricity supply in low voltage installation system. They are suitable for installation in
indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions,
industrial plants and where aliphatic and aromatic hydrocarbon may be present or where require chemical and
mechanical protections.

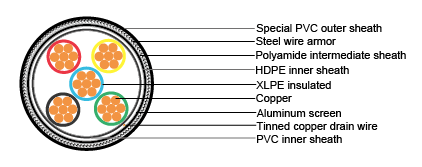

Construction
Conductor:
Solid or stranded copper
Insulation:
XLPE
Core identification
1 Core: Red or Black
2 Cores: Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 cores: Black core printed with white numbers
Inner sheath:
PVC. Color: black
Screen:
aluminum/polyethylene tape with tinned copper drain wire
Inner sheath:
HDPE. Color: black
Intermediate sheath:
Polyamide
Armor:
Galvanized steel wires or aluminum wires for 1 core cable
Sheath:
Speical PVC. Color: black
Properties
Rated voltage: 600V/1000V
Fire retardance: IEC 60332-3-22
Operating temperature: -20~60°C
Max. conductor operating temperature: 90°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
